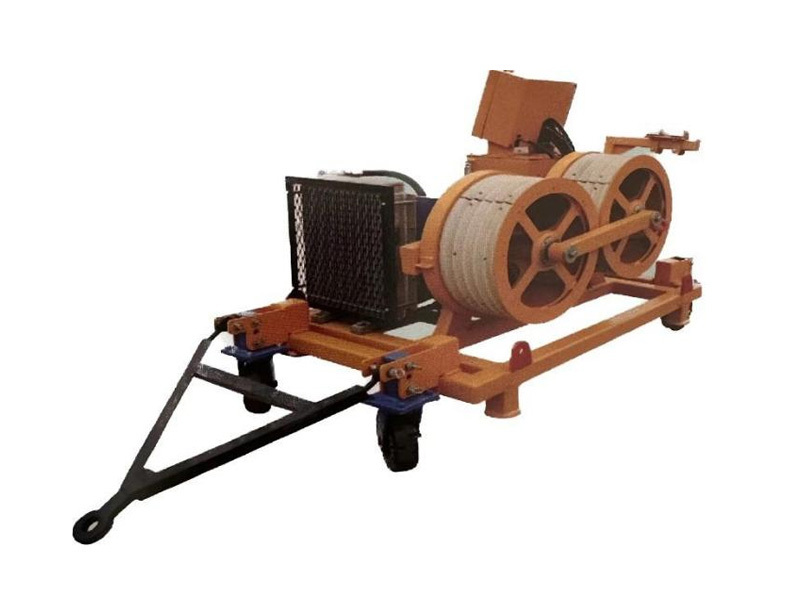

SA-ZWY-10 Hydraulic Tensioner
Categorie:
Keyword:
Our main products include: anti torsion steel wire rope, hydraulic traction machine, hydraulic tension machine, MC nylon and nylon hanging adhesive release pulley, connector, wire release bracket, steel wire rope tail car and other tension release construction equipment.
All product quality meets the requirements of the power industry standards, and has been tested and qualified by the Product Quality Inspection Center of the China Electric Power Research Institute, the National Electric Power Construction Research Institute, and the National Metal Products Quality Supervision and Inspection Center. It has also passed the type test and ISO9001-2008 international quality management system certification, and is recognized as a quality credit A industrial enterprise by the Henan Provincial Quality and Technical Supervision Bureau.
Prev:
:Next
. Single bridge structure trailer
. The max tension/pull for conductor-stringing operation can be preset and the volume can be read on the gauge
. Passive tensioner without motor work in low noise
. Main parts of the equipment adopted from the word-famous components
| Technology Characteristics | |
| Work with two pumps | |
| Max tension | 12KN |
| Max continuous tension | 10KN |
| Min starting tension | 1.5KN |
| Work with one pump | |
| Max tension | 6KN |
| Max continuous tension | 5KN |
| Min starting tension | 1KN |
| Structural Characteristics | |
| Maxpull speed | 6km/h |
| Bullwheel diameter | 500mm |
| Groove | 5 |
| Groove space | 40 mm |
| Max conductor diameter | / |
| Dimensions | 1680× 1070× 1400(mm) |
| Reference Weight | 700kg |
SA-ZWY-10 Hydraulic Tensioner
