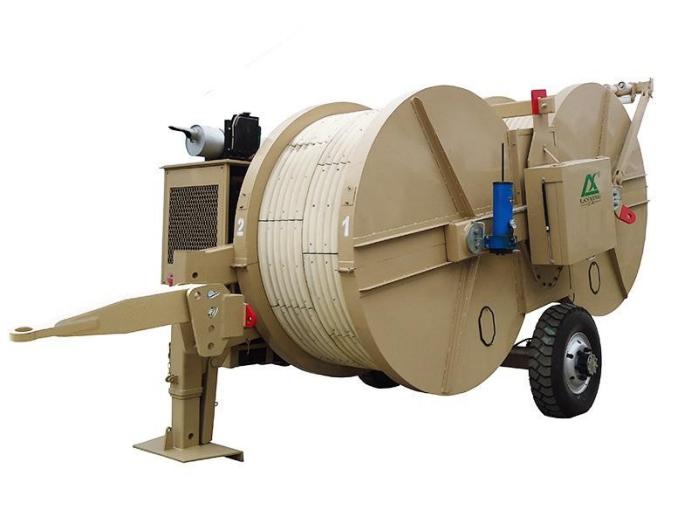

SA-ZQY-2×90 Hydraulic Tensioner
Categorie:
Keyword:
Our main products include: anti torsion steel wire rope, hydraulic traction machine, hydraulic tension machine, MC nylon and nylon hanging adhesive release pulley, connector, wire release bracket, steel wire rope tail car and other tension release construction equipment.
All product quality meets the requirements of the power industry standards, and has been tested and qualified by the Product Quality Inspection Center of the China Electric Power Research Institute, the National Electric Power Construction Research Institute, and the National Metal Products Quality Supervision and Inspection Center. It has also passed the type test and ISO9001-2008 international quality management system certification, and is recognized as a quality credit A industrial enterprise by the Henan Provincial Quality and Technical Supervision Bureau.
Prev:
. Full digital control
. With on-line control device
. Data transmission
. GPS positioning
. Automatic hydraulic oil cooling system
. Overload protection device
. Traction preconditioning
. LCD screen
|
Technology Characteristics |
|
|
Tensioner mode |
|
|
Max tension |
2 × 100KN/ 1 ×200KN |
|
Max continuous tension |
2 ×90KN/ 1 × 180KN |
|
Max continuous speed |
5km/h |
|
Puller mode |
|
|
Max pull |
2 × 100KN/ 1 ×200KN |
|
Continuous pull |
2 ×90KN/ 1 × 180KN |
|
Max continuous speed |
3km/h |
|
Corresponding speed(one rope) |
5km/h |
|
Structural Characteristics |
|
|
Bull-wheels nominal diameter |
1700mm |
|
Groove |
6×2 |
|
Groove space |
60 mm |
|
Max conductor diameter |
45mm |
|
Dimensions |
5700×2420×2900(mm) |
|
Reference Weight |
9000kg |
|
Hydraulic System |
|
|
Main hydraulic pump |
REXROTH Germany |
|
Main hydraulic motor |
REXROTH Germany |
|
Hydraulic Instrument |
WIKA Germany |
|
Hydraulic valve |
ATOS Italy/Integrated valve group SUN USA |
|
Hydraulic Fluid |
KunLun L-HM46,GB11118.1 |
|
Main Components |
|
|
Engine |
CUMMINS /WEICHAI |
|
Reducer |
BONFIGLIOLI Italy |
|
Controller |
YISILU Beijing |
|
Sensor |
DANFOSS Germany |
|
Electrical system voltage |
24VDC |
SA-ZQY-2x90 Hydraulic Puller&Tensioner
