Pulley Piece

Categorie:

Keyword:

Our main products include: anti torsion steel wire rope, hydraulic traction machine, hydraulic tension machine, MC nylon and nylon hanging adhesive release pulley, connector, wire release bracket, steel wire rope tail car and other tension release construction equipment.
All product quality meets the requirements of the power industry standards, and has been tested and qualified by the Product Quality Inspection Center of the China Electric Power Research Institute, the National Electric Power Construction Research Institute, and the National Metal Products Quality Supervision and Inspection Center. It has also passed the type test and ISO9001-2008 international quality management system certification, and is recognized as a quality credit A industrial enterprise by the Henan Provincial Quality and Technical Supervision Bureau.

Product Inquiry

Block wheels

:Next

Features Specs Photos Downloads

The pulley piece is used to install on the pulley, and a variety of specifications are available.

　　 5 different materials:

　　●Nylon---high toughness/high strength/light weight

　　●Nylon hanging glue---protection wire

　　●Nylon hanging insulating grease---insulating grease can be replaced/long service life

　　●Aluminum wheel hanging glue---high strength

　　●Steel wheel---high strength

　　 Every batch is tested.

　　 accept special orders.

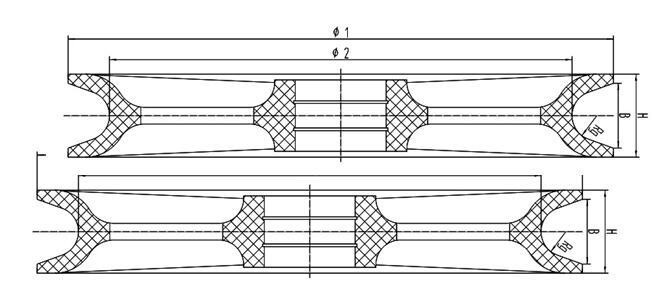

滑轮片

Model	Outer diameterφ1 mm	Base diameterφ2 mm	Wheel rradius Rg mm	Thickness H mm	Mouth width B mm	Rated load KN	weight Kg
HLN160×50	160	108	16	50	42	10	1.2
HLN1200×50	200	140	16	50	40	15	1.5
HLN250×60	250	180	20	60	46	20	2
HLN300×75	300	220	26	75	59	20	2.5
HLN320×60	320	240	21	60	46	20	2.6
HLN350×60	350	262	21	60	48	20	3
HLN360×110	360	260	40	110	90	20	4.5
HLN400×75	400	320	22	75	59	20	5
HLN508×75	508	408	25	75	61	20	6
HLN508×90	508	408	30	90	74	20	6.5
HLN660×90	660	560	30	90	72	Middle wheel 50	10.5
HLN660×100	660	560	30	100	78	Side wheel 30	12
HLN660×110	660	560	33	110	88	70	16
HLN780×90	780	660	30	90	72	30	14.3
HLN822×110	822	710	41	110	88	30	21
HLN916×110	916	800	42	110	88	Middle wheel 50	25.5
HLN916×110	916	800	43	110	88	Side wheel 100	27.5
HLN920×125	920	800	48.5	125	103	100	26
HLN1040×125	1040	900	45	125	100	100	30

　　Material: nylon

Model	Outer diameterφ1 mm	Base diameterφ2 mm	Wheel rradius Rg mm	Thickness H mm	Mouth width B mm	Rated load KN	weight Kg
mm	mm	mm	mm	mm	KN	Kg
HLNJ822×110	822	710	43	110	90	50	22
HLNJ916×110	916	800	42.5	110	90	50	24
HLNJ920×125	920	800	48.5	125	103	50	26
HLNJ1040×125	1040	900	48	125	103	50	30

　　Material: nylon hanging glue

尼龙挂胶

Model	Outer diameterφ1 mm	Base diameterφ2 mm	Wheel rradius Rg mm	Thickness H mm	Mouth width B mm	Rated load KN	weight Kg
HLN1160×150	1160	1000	62	150	126	60	45
HLN1160×150	边轮
HLN1160×130	1160	1000	50	130	106	180	55
HLN1160×130	中轮

　　Material: Nylon hanging insulating grease

Model	Outer diameterφ1 mm	Base diameterφ2 mm	Wheel rradius Rg mm	Thickness H mm	Mouth width B mm	Rated load KN	weight Kg
mm	mm	mm	mm	mm	KN	Kg
HLL508×75	508	408	16	75	63	30	9
HLL660×90	660	560	24	90	63	30	17
HLL660×100	660	560	30	100	72	30	19
HLL916×110	916	800	33	110	82	60	34
HLL916×126	916	800	45	126	98	60	36

　　Material: Aluminum wheel hanging glue

Model	Outer diameterφ1 mm	Base diameterφ2 mm	Wheel rradius Rg mm	Thickness H mm	Mouth width B mm	Rated load KN	weight Kg
HLG360×110	360	260	40	110	90	50	22
HLG660×90	660	560	30	90	72	180	38.5
HLG660×100	660	560	30	100	84	180	41
HLG660×110	660	560	42	110	88	200	48
HLG822×110	822	710	43	110	90	220	64
HLG916×110	916	800	42.5	110	90	250	80
HLG920×125	920	800	48	110	94	250	85
HLG1040×125	1040	900	45	125	100	250	102.00

　　Material: cast steel
